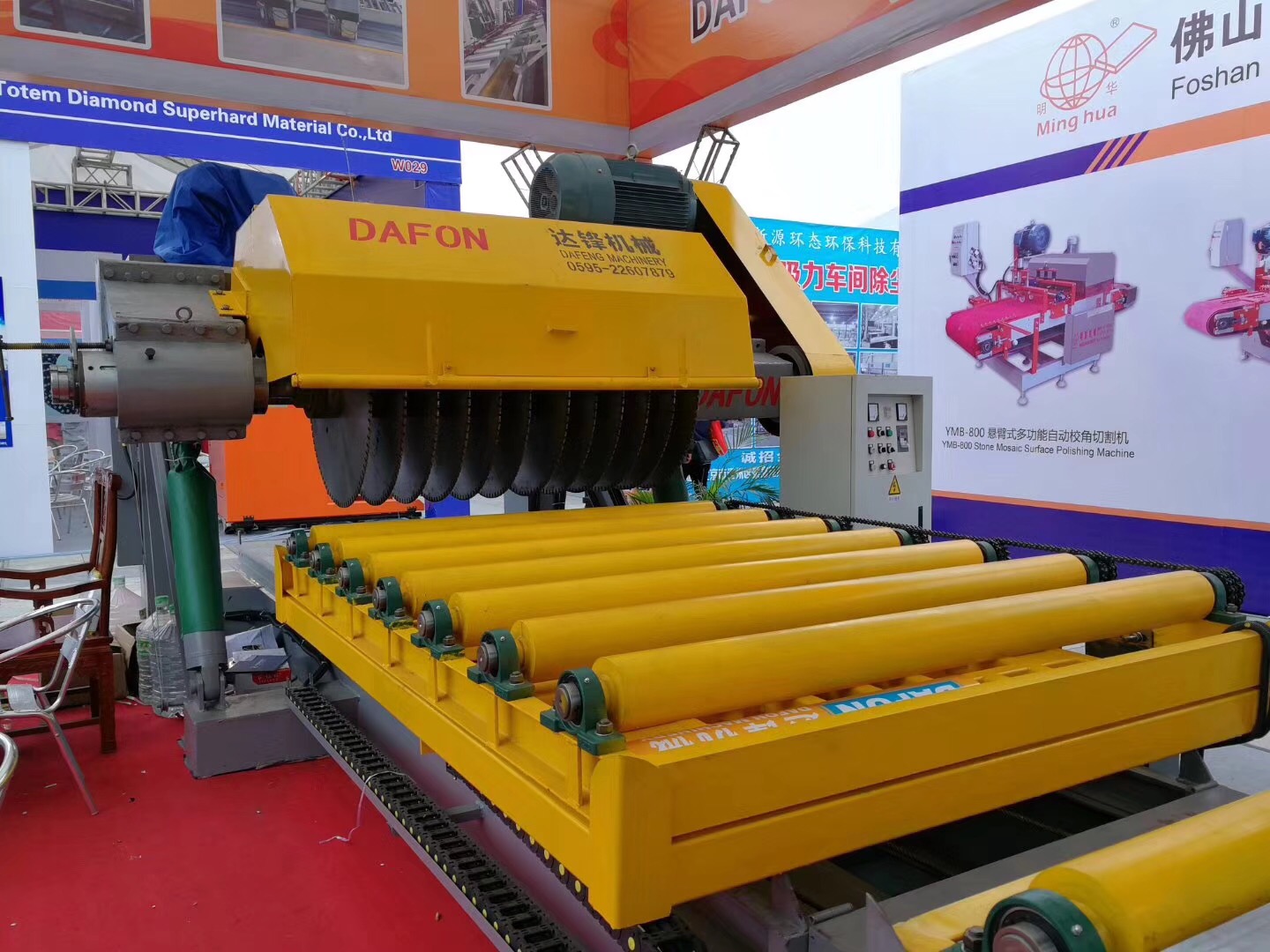

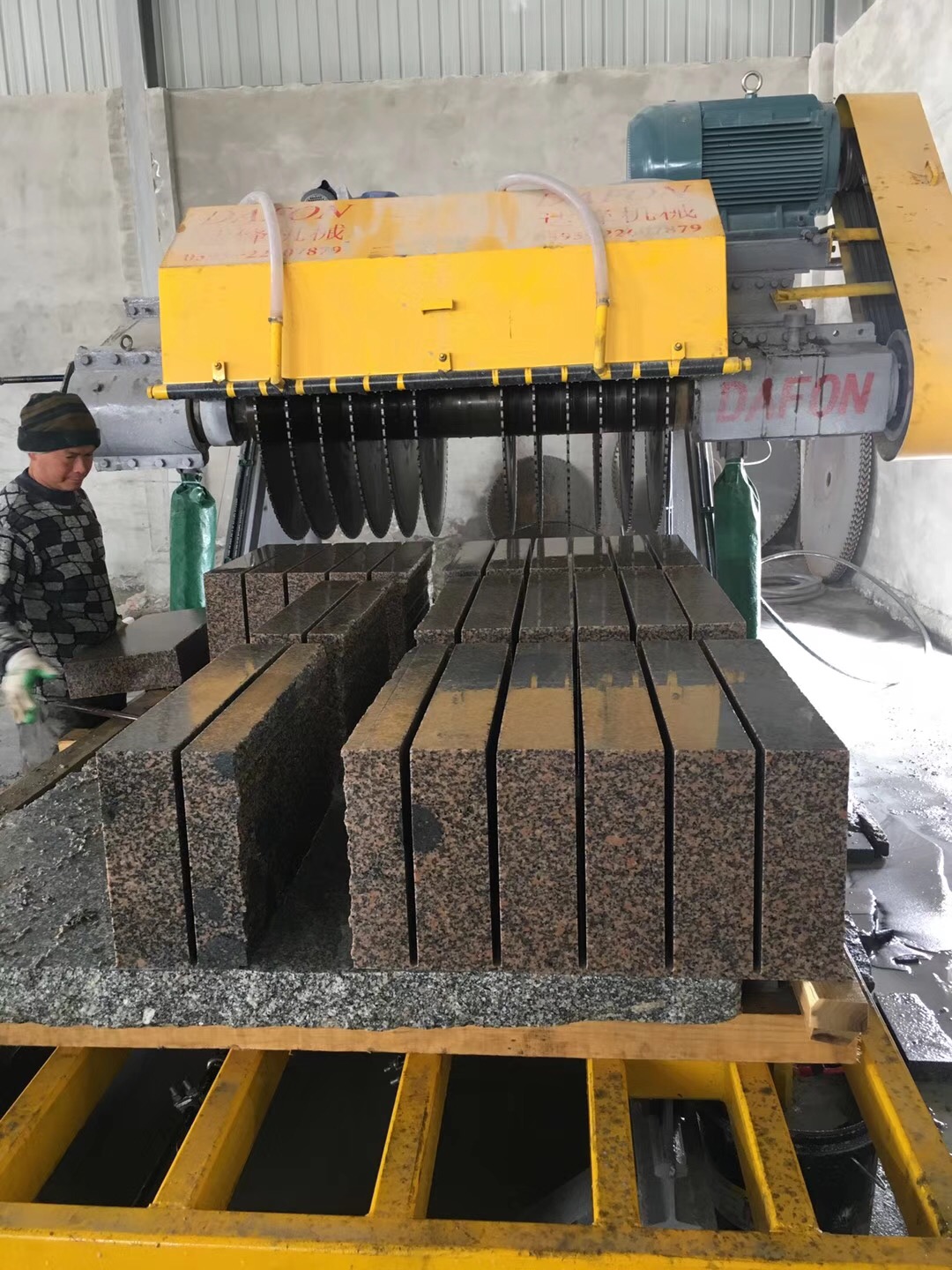

curbstone cutting machine line
- 【Name】multiblade stone slicing machine
- 【Model】DF1200-12
- 【Category】curbstone cutting machine
- 【Company】DAFON Machinery
- 【Clicks】22922
- 【Time】2020-06-09 04:06:14
Features:
1. This equipment proves most effective when used together with stone edge cutting machine.
2. Technical data for long stone cutting: max. diameter of blade-1200mm; max. number of blades used-12pcs; max. Cutting height-450mm.(1.6m blade with 600mm cutting height)
3. Cast iron machine is more stable with less chance of vibration under the operating condition.
4. The machine operates automatically through the main control unit consisting of frequency converter, transformer, AC contactor and time relay, which can more effectively control vertical movement of oil cylinder, trolley operation and slab cutting efficiency.
5. Unlike traditional stone cutting, it dramatically increases the productivity and reduce labor cost and power consumption.
Technical Data:
|
Dimension (mm) |
6000*2800*2500 |
|
diameter of blade (mm) |
1200 or customized |
|
number of blades (pcs) |
12 |
|
Max. cutting size (mm) |
3000*1700*450 |
|
Workbench size (mm) |
2500*1800 |
|
Weight (t) |
10 |
|
Max. cutting depth (mm) |
450 |
|
Main motor power (kw) |
55 |
