other machines

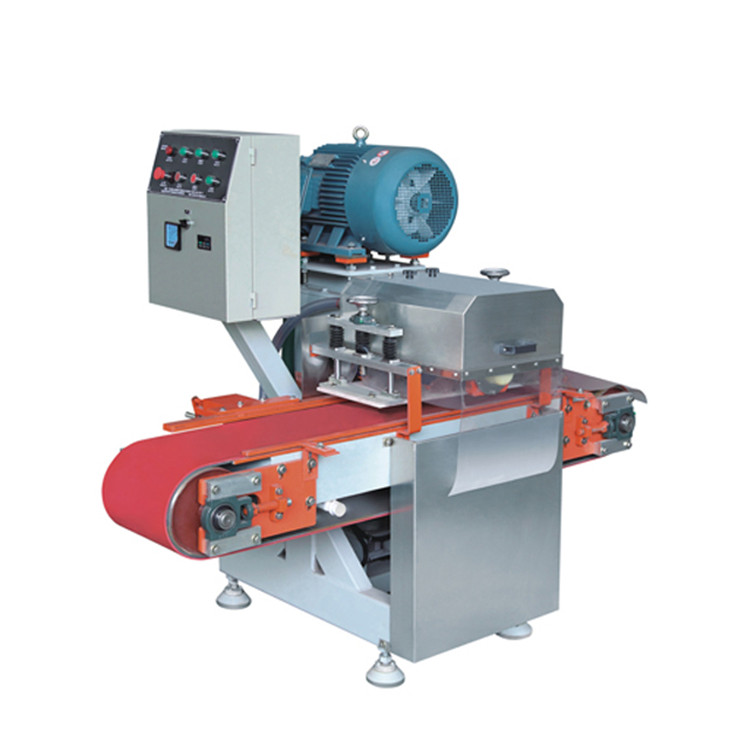

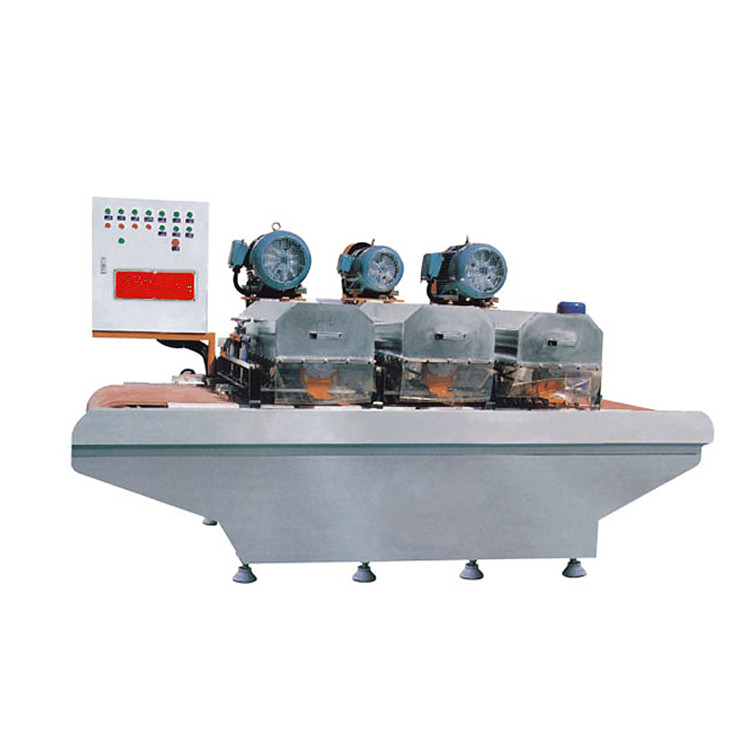

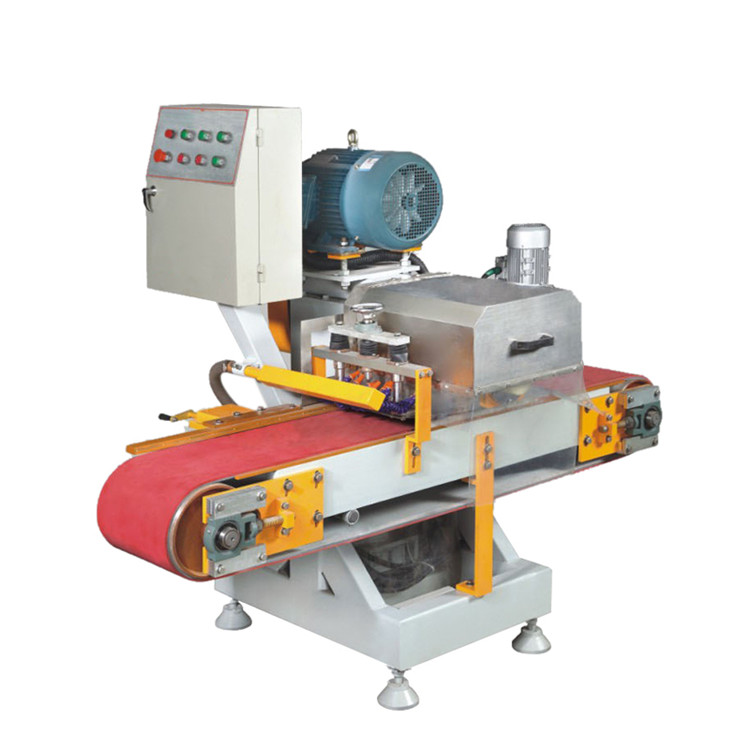

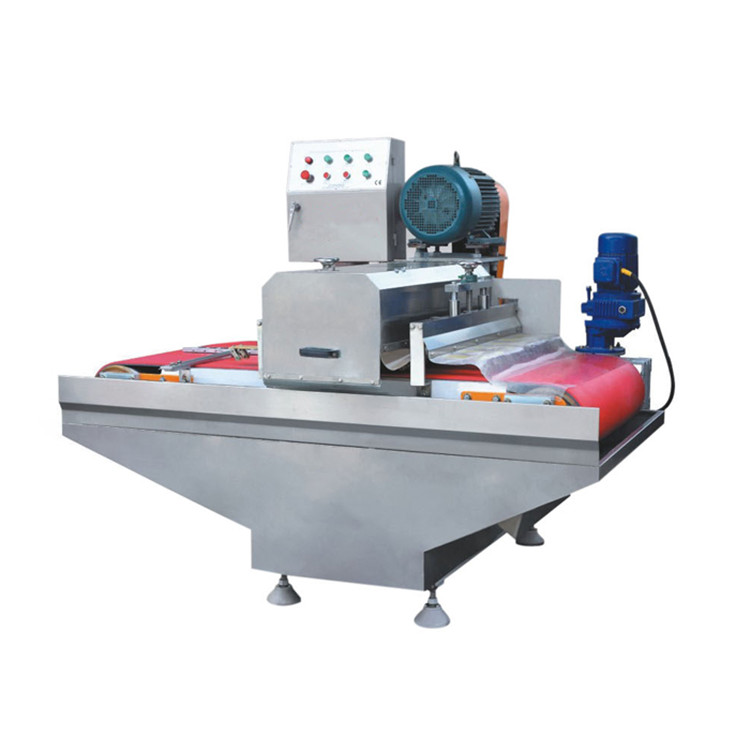

- 【Name】Mosaic cutting machine
- 【Model】
- 【Category】
- 【Company】DAFON Machinery
- 【Clicks】1375
- 【Time】2020-06-12 09:50:39
Features:
This machine can cut the thickness 150mm maximum(depending on blade size), several pieces will come out at one time. The cutting output of this machine is 4-6 times of manual cutting output, is absolutely a good helper for stone material in processing Mosaic, the machine is advanced in design, medium brick spindle high precision, spindle end with automatic lifting type fixed structure high cutting efficiency, good processing effect.
|
Technical parameter |
||
|
Model |
DFQ-400-18.5 |
DFQ-400-22 |
|
Spindle head |
1 |
1 |
|
Belt width |
420mm |
420mm |
|
Blade diameter |
180-330mm |
180-330mm |
|
Max cutting thickness |
50mm |
50mm |
|
Max cutting width |
400mm |
400mm |
|
Belt speed |
0.1-6m/min |
0.1-6m/min |
|
Spindle motor power |
18.5kw |
22kw |
|
Lifting motor power |
0.55kw |
0.55kw |
|
Belt motor power |
1.5kw |
1.5kw |
|
Total power |
20.55kw |
24.05kw |
|
Total weight |
1200kg |
1200kg |
|
Dimension |
2000×1600×1700mm |
2000×1600×1700mm |
|
Voltage |
380V/50HZ |
380V/50HZ |
